Choosing between the KEYDIY KD-X6 and KD-X4 mainly depends on the vehicle systems you work with and whether you need built-in functions or are comfortable using additional adapters. The guide below focuses on the differences that directly affect the purchase decision.

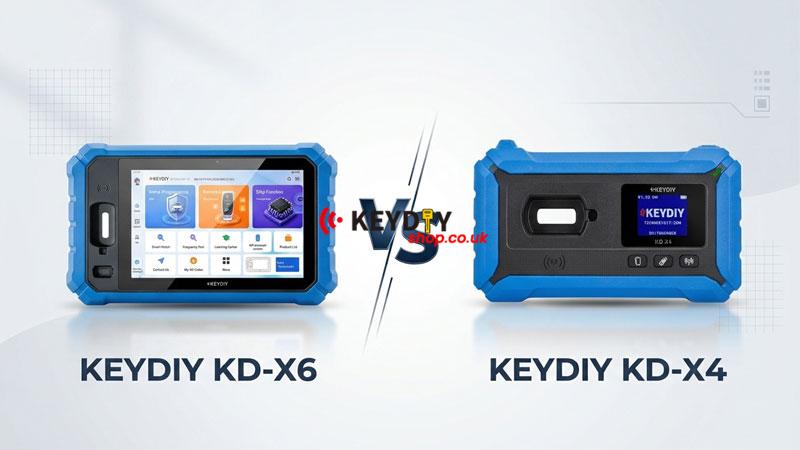

KEYDIY KD-X6 vs KD-X4: Key Differences
| Feature | KD-X6 | KD-X4 |
| Image |  |
 |
| Standalone Operation | Yes | No |
| Mercedes-Benz FBS3 | Add Key & All Keys Lost | Not supported |
| Audi/Porsche MLB | Built in | KD-MP required |
| VW/Audi/Skoda MQB48 | Built in | KD-MP required |
| VW/Audi 5C/5D | ✓ | ✓ |
| BMW CAS/FEM/BDC | Supported | KD-EPA required |
| DoIP | Built in | KD-DOIP required |
| Motorcycle Key Programming | Supported | KD-MOTO required |
| Car Key Programming | ✓ | ✓ |
| Toyota / Ford / Land Rover / Nissan / Volvo / Hyundai / Kia Key Programming | ✓ | ✓ |
| Remote Generation | ✓ | ✓ |
| Chip Identification & Cloning | ✓ | ✓ |
| Cloud Diagnosis / C-Client | ✓ | Not supported |
What the Difference Means for Your Purchase
You do not need to compare every row individually. The buying decision mainly comes down to these points:
1. Need Mercedes-Benz FBS3? Choose KD-X6.
2. Need Audi/Porsche MLB or MQB48 without KD-MP? Choose KD-X6.
3. Need built-in DoIP? Choose KD-X6.
4. Already have, or do not mind using adapters? KD-X4 may be sufficient.
5. Mainly need shared functions such as car-key programming, remote generation, and chip cloning? Both cover them.
6. Need motorcycle key programming? Both support it, but the required accessories differ.
7. Want Cloud Diagnosis / C-Client? Choose KD-X6.
The practical distinction is simple: KD-X6 puts more functions into the main device, while KD-X4 uses additional adapters for some applications.

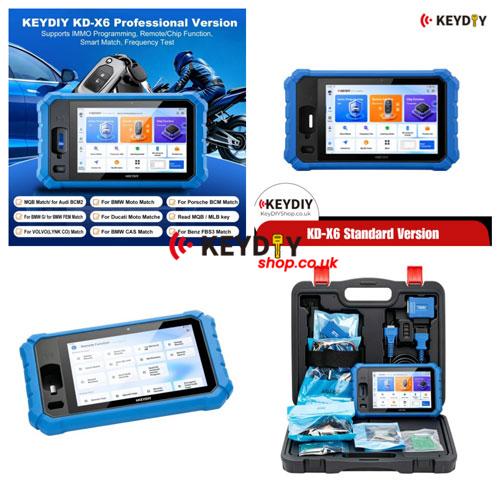

KD-X6 Standard vs Full Version
If you decide on KD-X6, there are two package levels to consider.
| KD-X6 Standard | KD-X6 Professional/Full | |
| Listed match/read licenses | Purchased separately | Included |
| KD-MOTO adapter | Not included | Included |
| DB25-FBS3 adapter | Not included | Included |
Standard Version
1. Lower package configuration.
2. Selected match/read functions require separate licenses.
3. KD-MOTO and DB25-FBS3 are purchased separately.
Professional/Full Version
1. Listed match/read licenses are included.
2. KD-MOTO adapter is included.
3. DB25-FBS3 adapter is included.
If you already know which functions you need, compare the included licenses and accessories before choosing between the two packages.
KD-X6 or KD-X4?

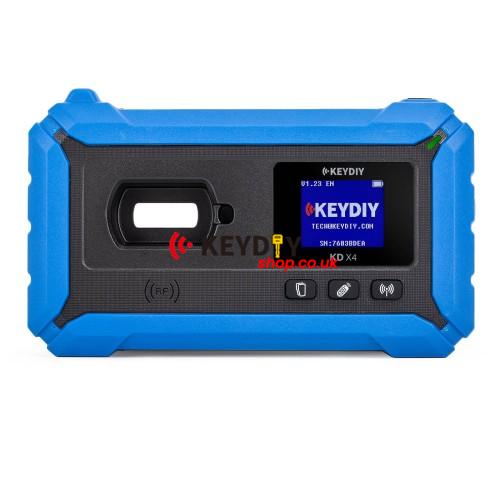

Choose KD-X4 if:
1. Your current jobs are covered by its supported functions.
2. You mainly need common car-key programming functions.
3. You already have, or do not mind adding, the required adapters.
4. You do not need Mercedes-Benz FBS3, built-in MLB/MQB48 or built-in DoIP.

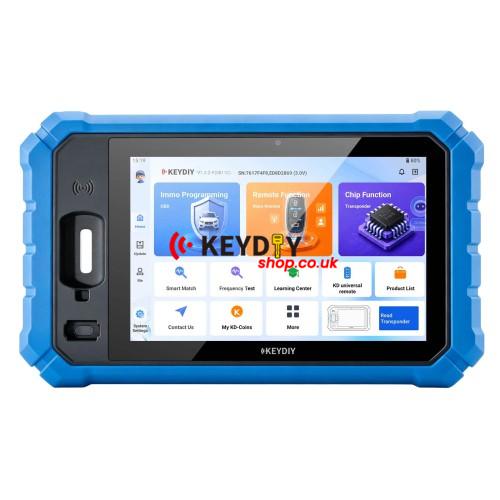

Choose KD-X6 if:
1. Mercedes-Benz FBS3 is part of your work.
2. You need built-in Audi/Porsche MLB or MQB48 functions.
3. You want built-in DoIP.
4. You prefer a standalone setup.
5. Cloud Diagnosis / C-Client is important to you.
Bottom line: Choose based on the systems you actually need to program. If the KD-X4 already covers your jobs, there is no need to move up simply for the larger feature list. If you need the KD-X6-specific functions, those differences are the main reason to choose it
