KEYDIY KD-MP MLB MQB Tool is a professional solution designed for advanced VAG key work, supporting Audi, Porsche, Lamborghini, Bentley, and VW Touareg models.
It enables:
- Key identification
- IMMO data collection
- Key data calculation
- MQB / MLB key processing support
This tool is essential for locksmiths working with MQB platform vehicles, especially for situations such as key generation, all keys lost, or data analysis.

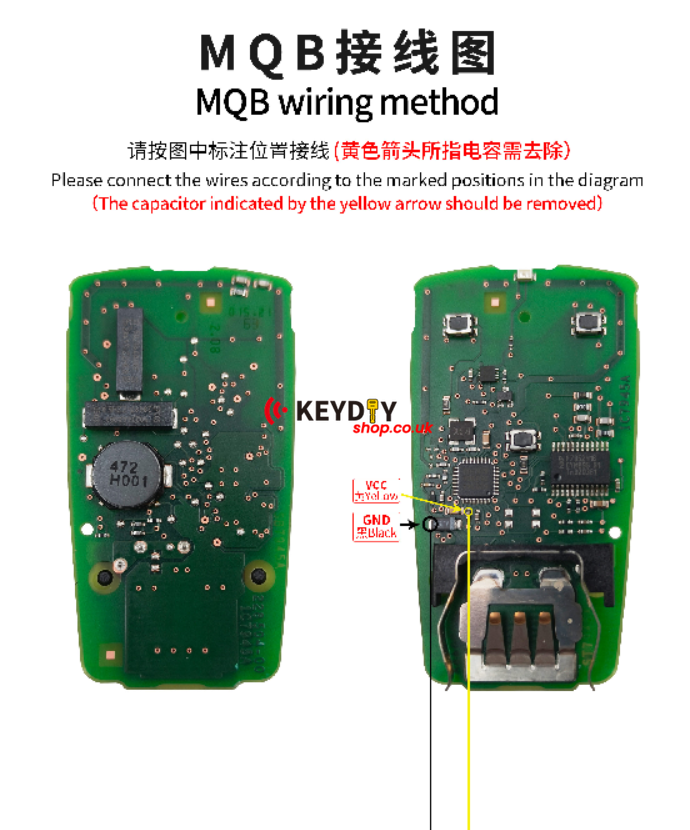

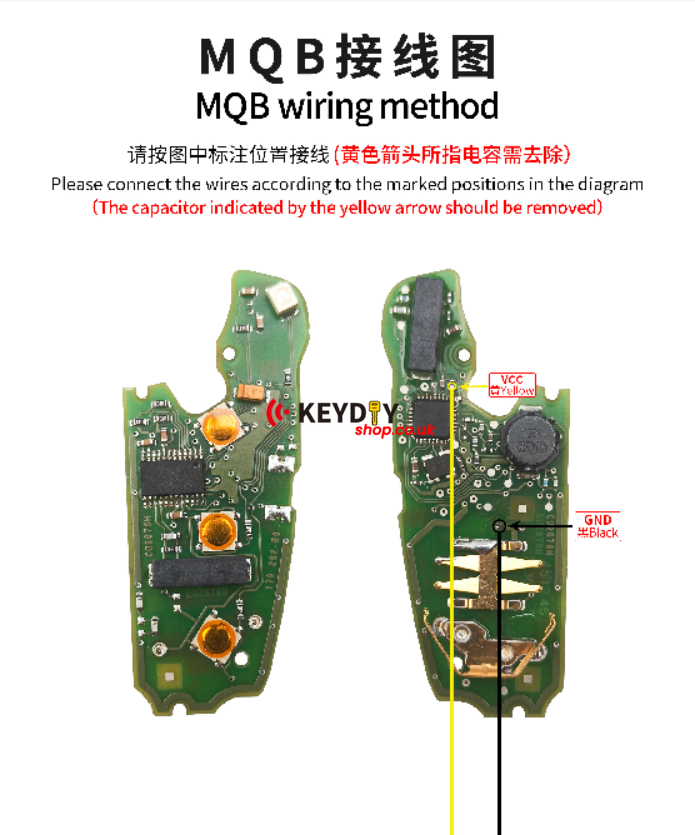

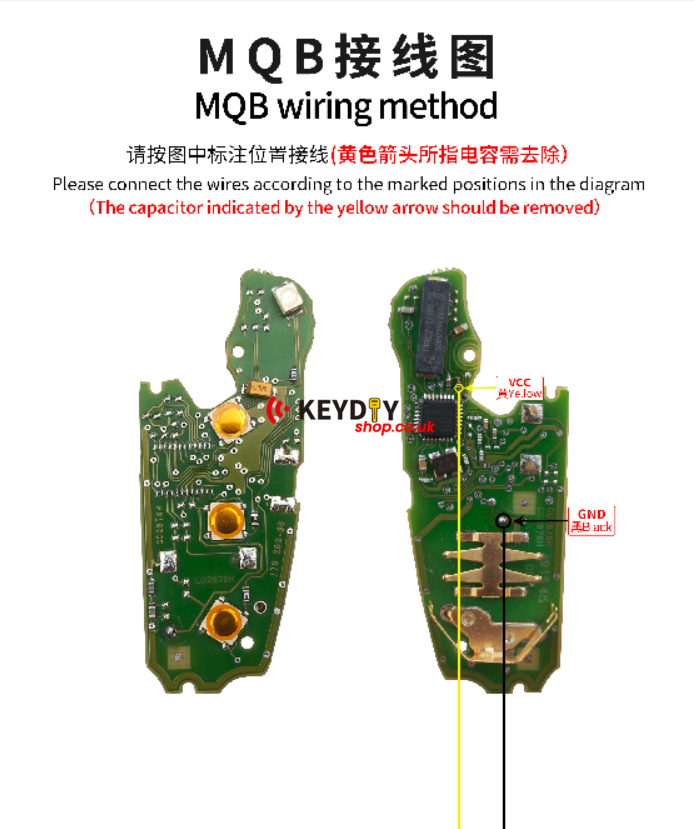

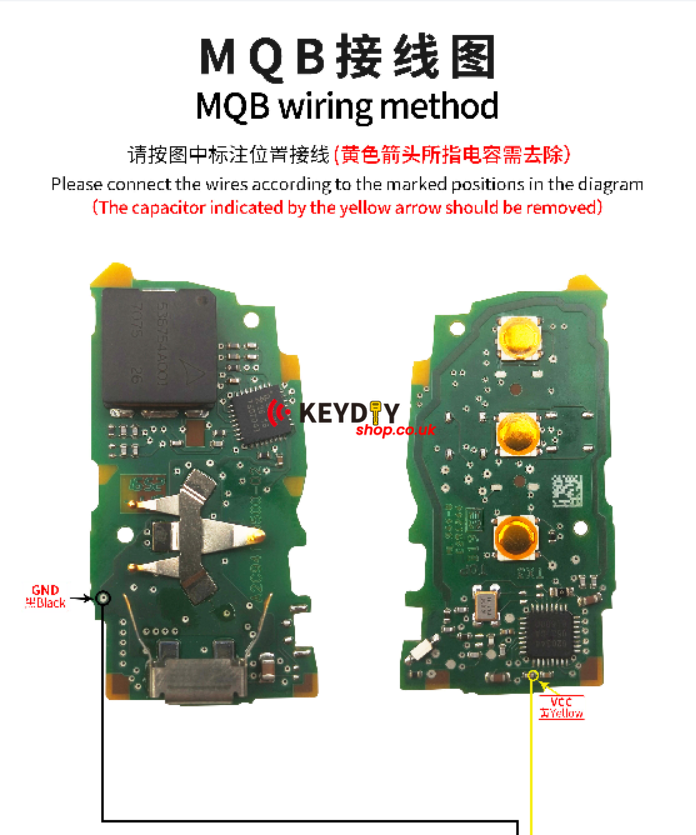

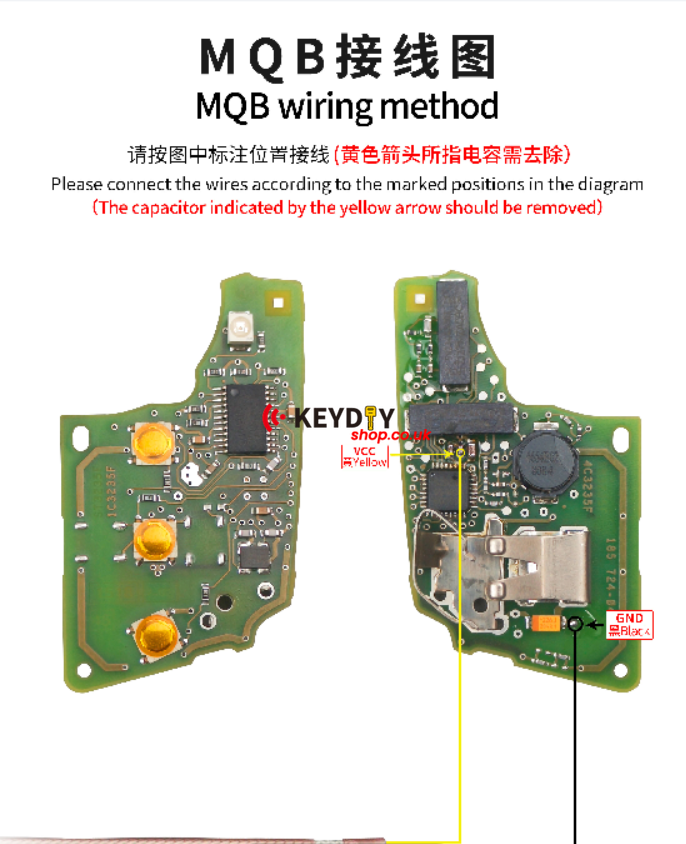

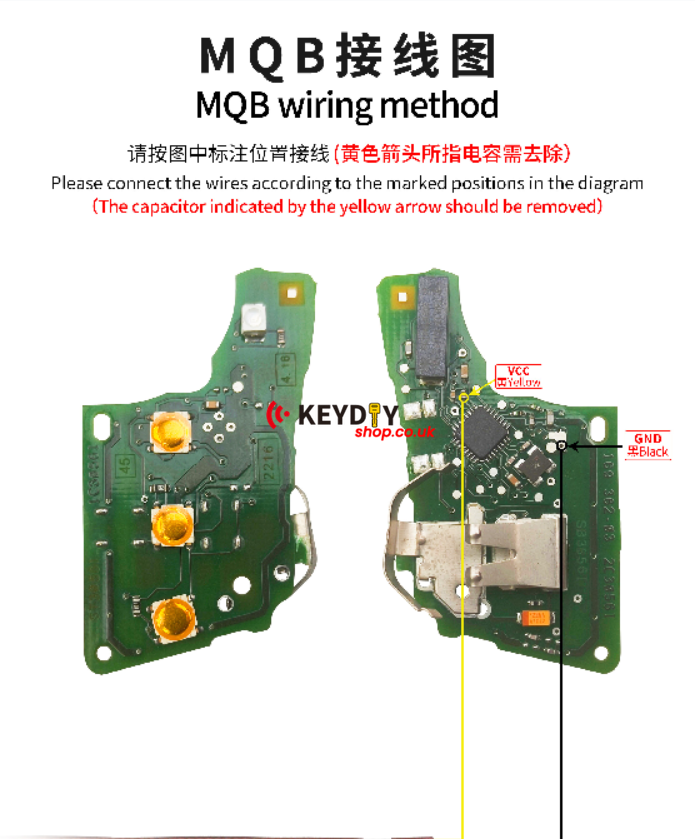

MQB Key PCB Connection Diagram
Below is the standard MQB key PCB wiring reference when working with the KD-MP tool, please check your PCB, if not same like the diagram, then not supported.
Please connect the wires according to the marked positions in the diagram
The capacitor indicated by the yellow arraow should be removed.
